Tips:

How to avoid VAT for EU country customers

You can place orders from China to avoid VAT if we have goods in stock in

EU warehousemore than 150 euros, we will shipthe products from the EU

warehouse for you，On the order page, you can see the priceafter VAT is

reduced for you.

Features:

• Supports lead acid battery and li-ion battery connections.

• With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply

access can trigger the activation of the li-ion battery.

• Support three-phase pure sine wave output (350~415V).

• It has charging and discharging time sharing setting function.

• Supports phase voltage adjustment in the range of 200, 208, 220, 230, 240Vac

• Supports two PV inputs, with the function of simultaneously tracking the maximum power charging

or carrying capacity of two MPPT.

• Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high power modules.

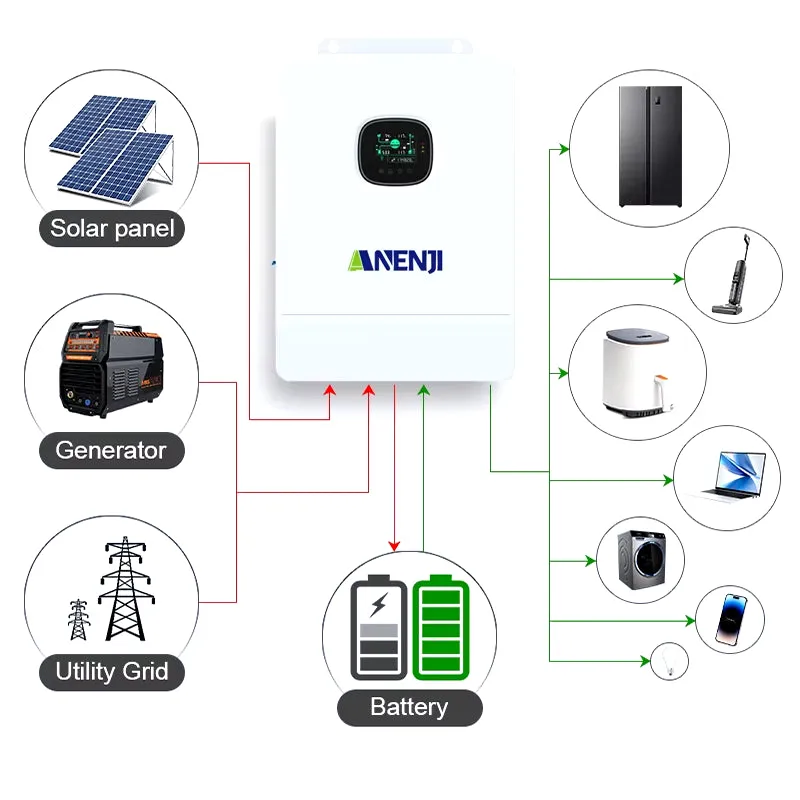

• 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging.

• With the time-slot charging and discharging setting function, you can set the time period for cutting in/out of mains charging and switch the time period between battery discharging and mains bypass power supply mode.

• Energy saving mode function to reduce no-load energy losses.

• With two output modes of utility bypass and inverter output, with uninterrupted power supply function.

• LCD large screen dynamic flow diagram design, easy to understand the system data and operation status.

• 360° protection with complete short circuit protection, over current protection, over under voltage protection, overload protection, backfill protection, etc.

• Support CAN, USB, and RS485 communication

packing list:

Inverter x1

Instruction x1

WiFi module*1(optional)
