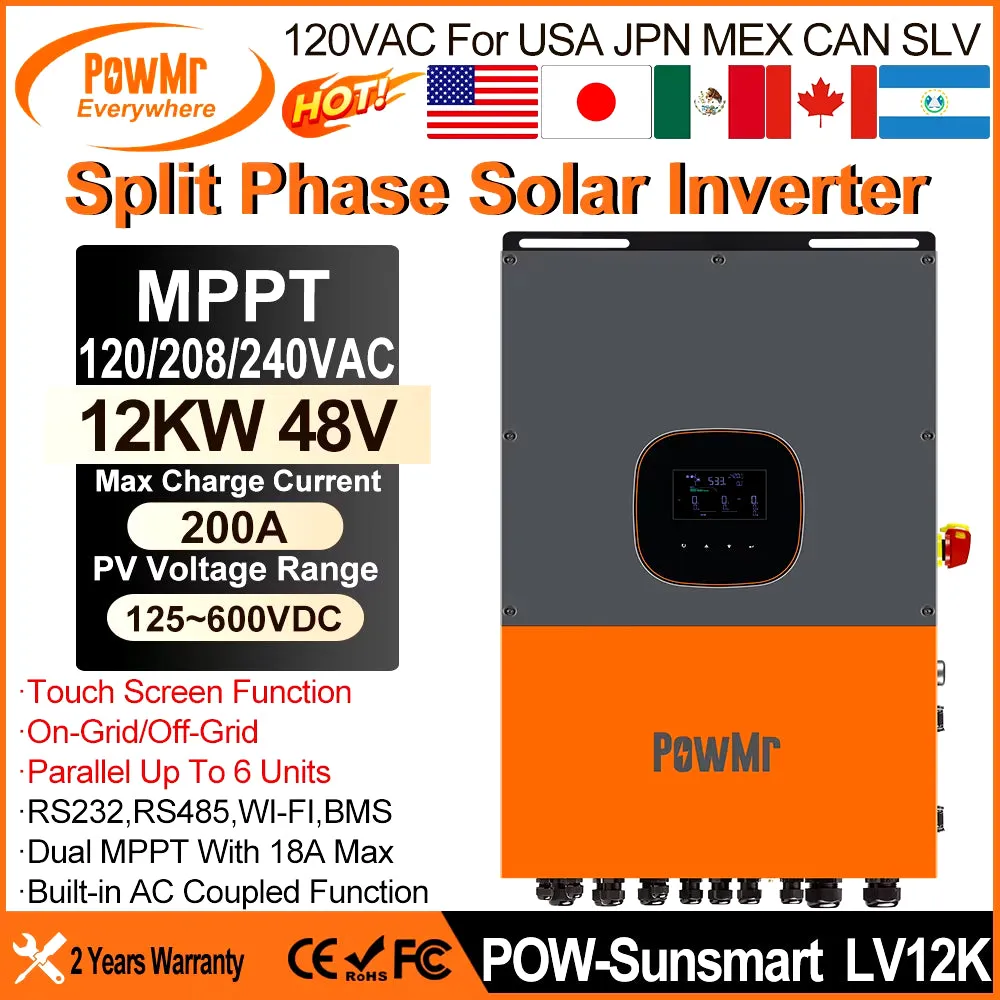

PowMr 12KW 48V Split Phase Solar Inverter 120Vac/208Vac/240Vac Output Build in MPPT 200A Controller&WI-FI Max PV 600Vdc Input

Introduction:

This hybrid PV inverter can provide power to connected loads by utilizing PV power, utility power and battery power.
Depending on different power situations, this hybrid inverter is designed to generate continuous power from PV solar modules (solar panels), battery, and the utility. When MPP input voltage of PV modules is within acceptable range (see specification for the details), this inverter is able to generate power to feed the grid (utility) and charge battery. This inverter is only compatible with PV module types of single crystalline and poly crystalline. Do not connect any PV array types other than these two types of PV modules to the inverter. Do not connect the positive or negative terminal of the solar panel to the ground.


Feature:

1.IP65 waterproof and dustproof for various working conditions.

2.On-grid and off-grid pure sine wave inverter.

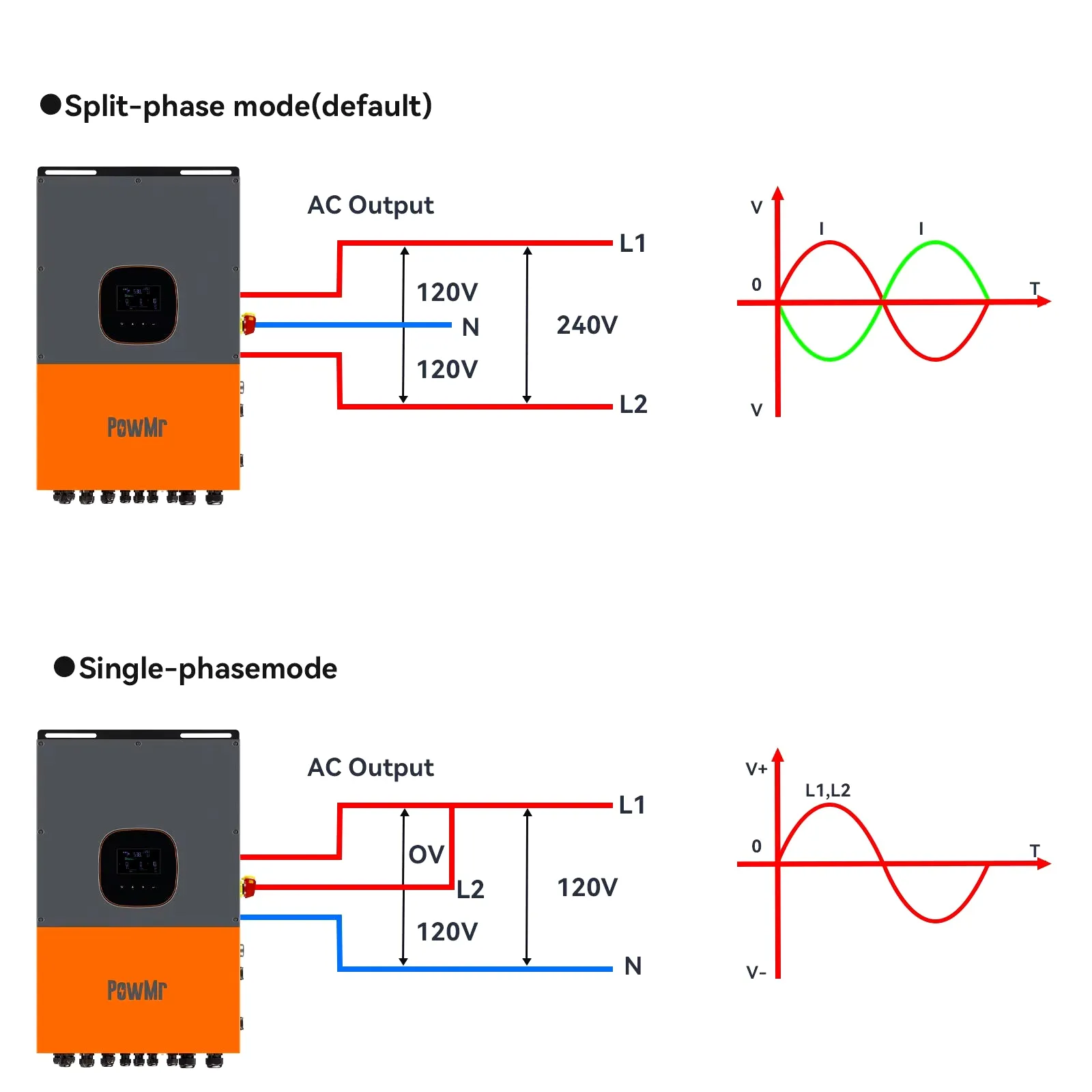

3.Support both Split Phase 208/240Vac and Single Phase 120Vac.

4.Built-in AC coupled function.

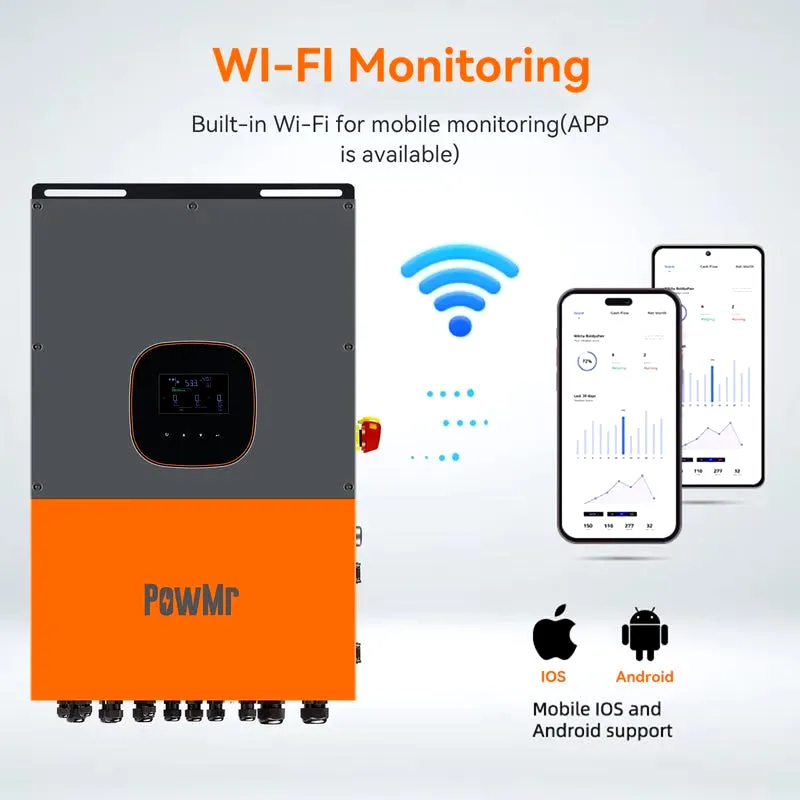

5.Built-in Wi-Fi for mobile monitoring (APP is available).

6.Accepts second input power source, generator input compatible.

7.Optional external CT sensor to guarantee 100% self-consumption.

8.Built-in communication port for BMS (RS485).

9.2 MPP trackers, dual MPPT with 18A Max. input current.

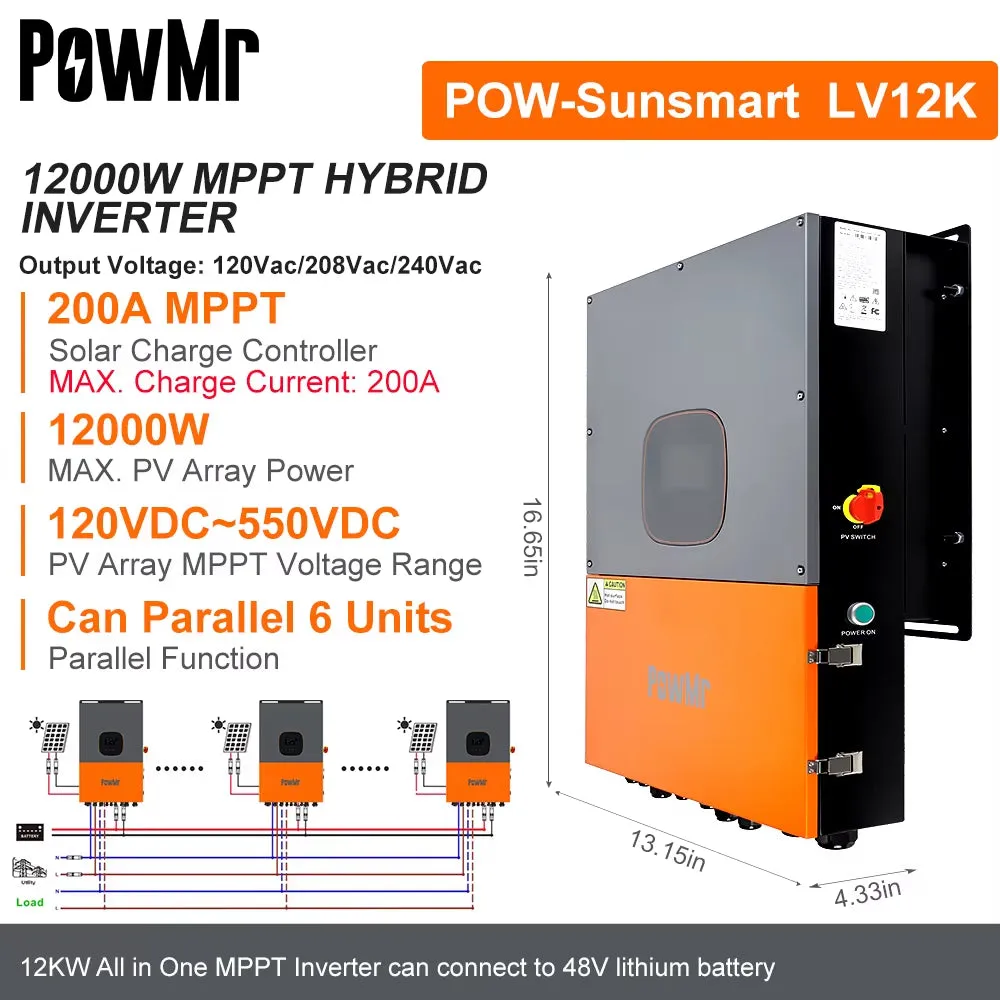

10.Parallel operation up to 6 units.


Specification:


MODEL

POW-Sunsmart LV12K

Permitted Parallel Number

1~6

AC Input

Nominal Input Voltage

120Vac

Acceptable Voltage Range

85~140Vac (per phase)

Nominal Input Frequency

50Hz/60Hz

AC Output (Back-Up)

Rated Output Power

10000VA/10000W

Nominal Output Voltage

120Vac (P-N), 208Vac (P-P), 240Vac (P-P)

Efficiency

91%

Battery Specification

Battery Type

Lithium and Lead Acid Battery, support user define

Nominal DC Voltage

40-62 VDC

System Voltage

48V

AC Charge & PV Charge Mode

Charging Algorithm

3-Stages

Max AC Charging Current

200A

Max. PV Array Power

12000W

PV MPPT Voltage Range

120~550Vdc

Max. PV Array Open Circuit Voltage

600Vdc

Max Charging Current (AC PV)

200A

AC Output (On-Grid)

Nominal Output Power

10000VA/10000W

Nominal Output Voltage

120Vac (P-N), 208Vac (P-P), 240Vac (P-P)

Output Voltage Range

105.5Vac~132Vac (per phase)

Nominal Output Current

41.5 A per phase

Power Factor

0.9 lag to 0.9 lead

General Specification

Protection Degree

IP 65

Operating Temperature

-25± C to 60± C (>45± C derating)

Communication Interface

RS232, RS485, WI-FI, USB

Dimension

215.5 x 515 x 715mm

Net Weight

45kg


Product Overview:
