Product Details
+PowMr 18.KW 220Vac/380Vac three phase Solar Inverter Charger With MPPT 80A Solar Chrge Controller DC 48V System Output AC 220V Max Input PV 500V Work Without Battery And Parallel 9 Unit Function WIFI
Note:

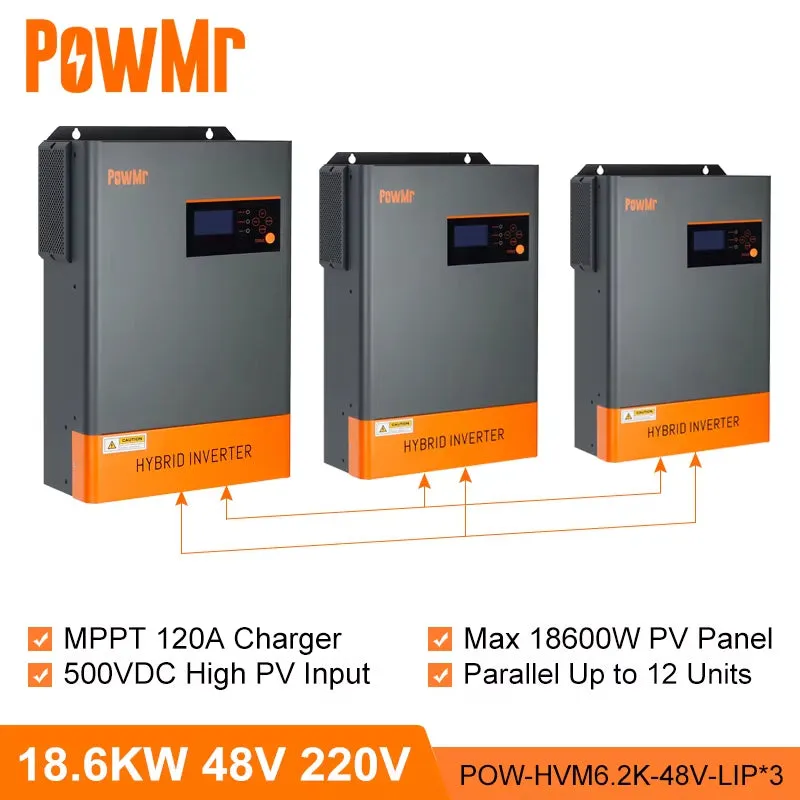

1) POW 18.6KW is Paralleled by 3 Units Hybrid POW 6.2K Inverter With Parallel Kits
2) For European Union customers, You can select shipping from China, We will ship from EU warehouse. You don't pay extra money. The estimated delivery is 3-7 days.
NOTE1: This is a wide voltage Hybrid inverter. Solar panel input voltage must be higher 150V so that can start up the inverter to work.
NOTE 2: This Hybrid Inverter supports the WIFI function,but need to buy the WIFI module connect to APP so that can monitor.
NOTE 3: If choose with Parallel function model, the parallel kit already built in inside, don't need you to buy and install separately.
Model Number |
POW-HVM6.2K-48V-LIP |
Charging Mode |
MPPT |
Rated Load Power |
6200W |
Systerm Voltage |
48V |
Output Voltage |
230V土5% |
Battery Type |
Lead-acid,Lithium and No Battery |
Surge Power |
12400VA |
Maximum PV Input |
450V |
Maximum MPPT Charging Current |
80A |
Maximum PV Input Current |
18A |
Maximum PV Input Power |
6200W |
Optional Accessories |
Wifi Module |
Paraller Capability |
Yes,Up to 9 Units |
Can achieve three-phase output |
|
Weight(Kg) |
11.5 |
Dimension(MM) |
448X295X105 |

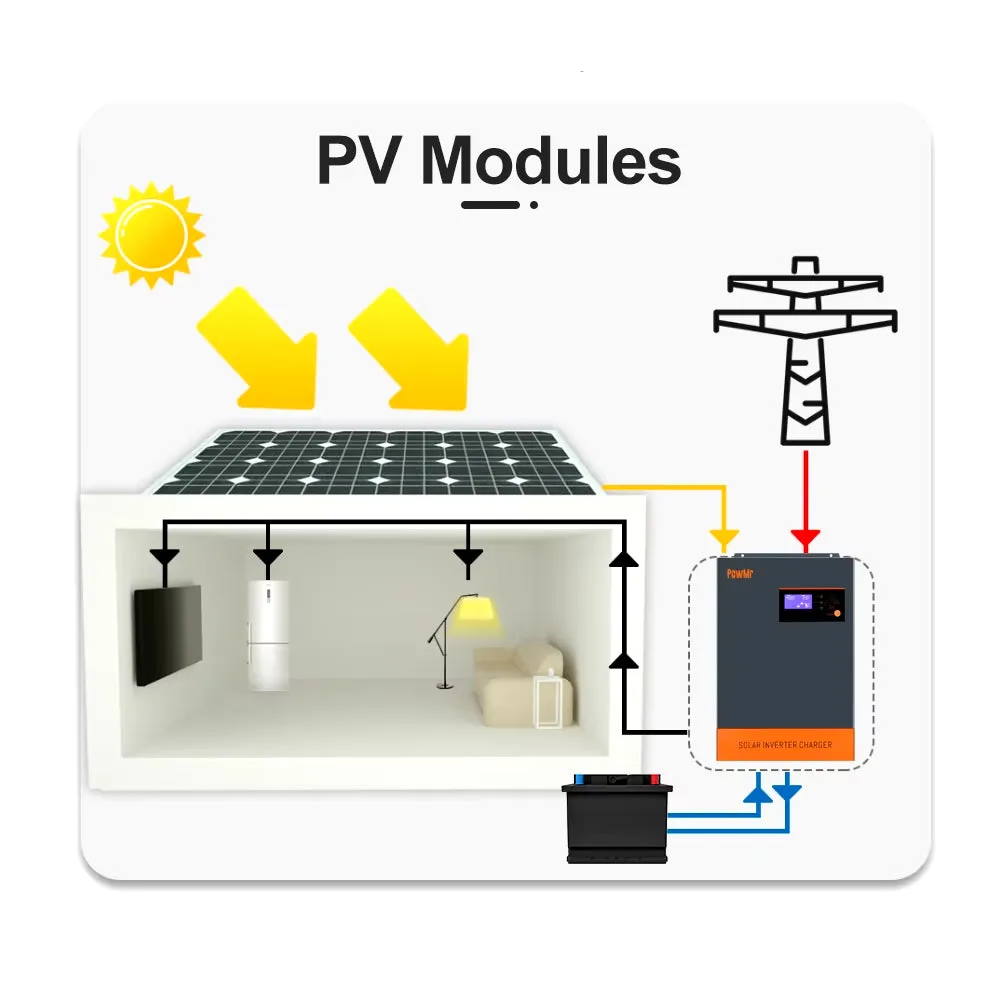

Basic System Architecture
The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
1.Generator or Utility.
2.PV modules (option)
Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.
