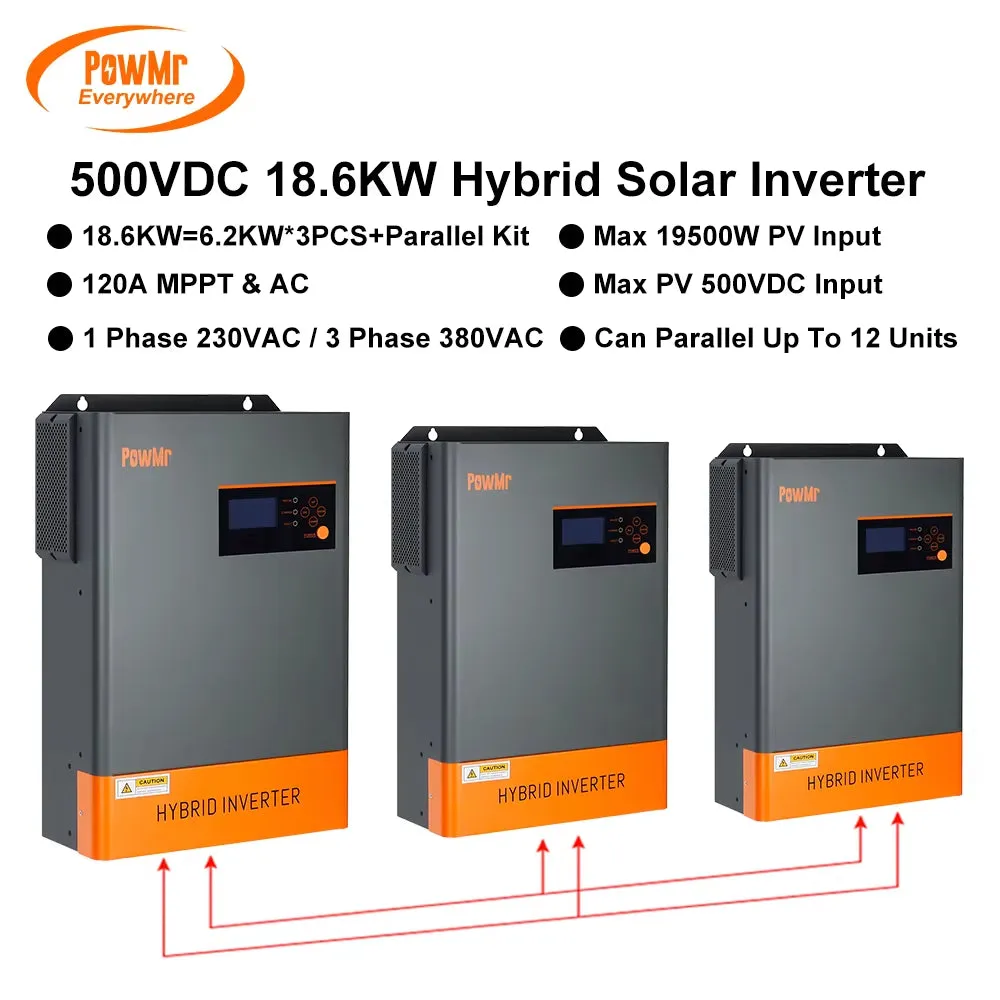

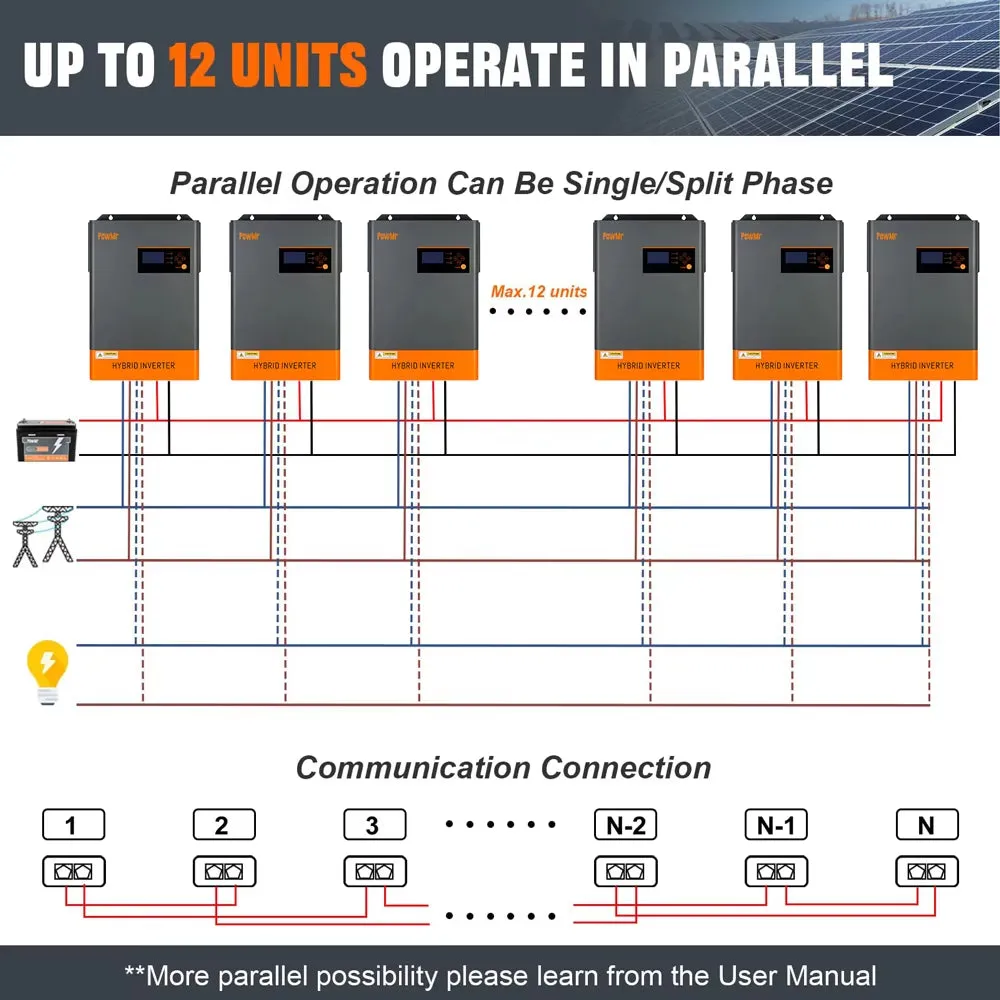

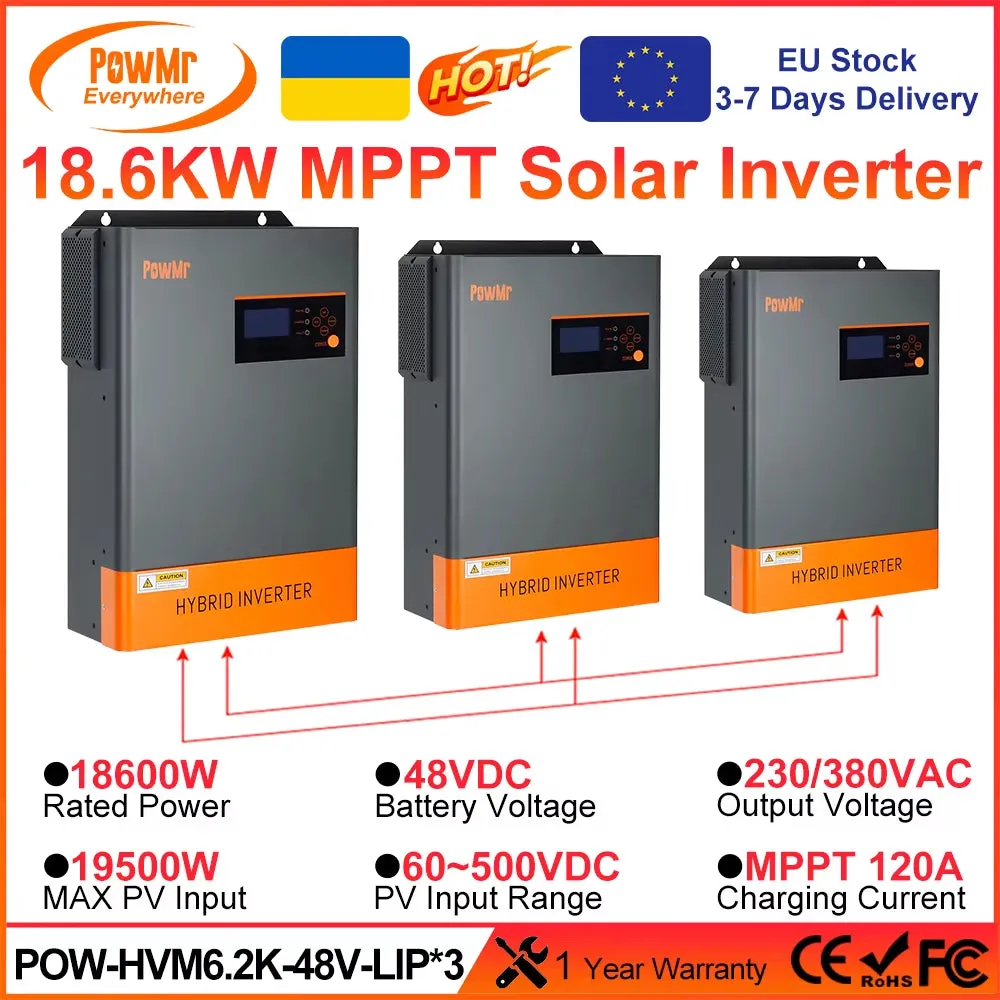

+PowMr 18.6KW Three Phase Hybrid Solar Inverter 48V to 220VAC/380VAC With 120A MPPT Solar Charge Controller Can Parallel 12 Units
Introduction:
This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Feature:
1)Pure sine wave inverter
2)Inverter must running with battery
3)Built-in MPPT solar controller
4)Configurable input voltage range for home appliances and personal computers via LCD setting
5)Configurable battery charging current based on applications via LCD setting

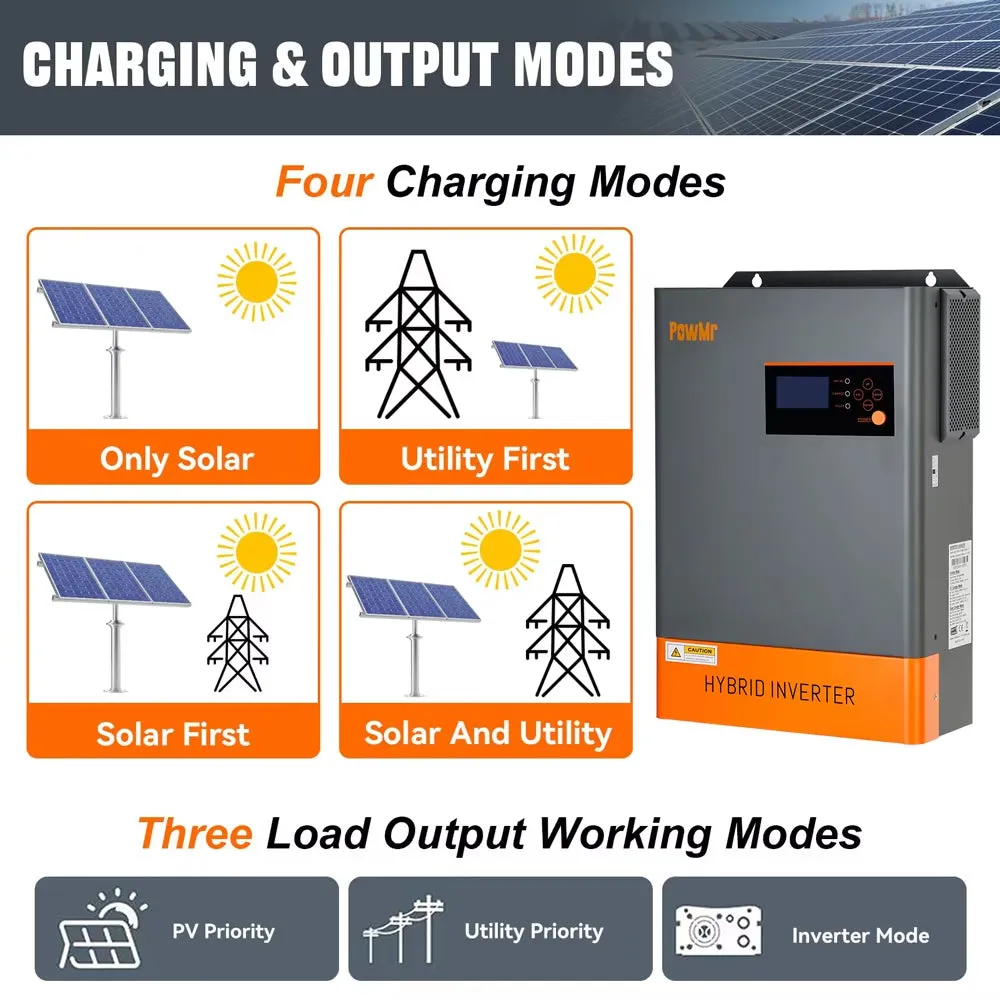

6)Configurable AC/Solar Charger priority via LCD setting
7)Compatible to mains voltage or generator power
8)Auto restart while AC is recovering
9)Overload/ Over temperature/ short circuit protection
10)Smart battery charger design for optimized battery performance
11)Cold start function
Basic System Architecture:
The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
1.Generator or Utility.
2.PV modules (option)
Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.
Specifications:
INVERTER MODEL |
POW-HVM6.2K-48V-LIP |
Rated Output Power |
6.2KVA/6.2KW |
Input Voltage Waveform |
Sinusoidal (utility or generator) |
Nominal Input Voltage |
230Vac |
Nominal Input Frequency |
50Hz / 60Hz (Auto detection) |
Efficiency (Line Mode) |
>95% |
Output Voltage Waveform |
Pure Sine Wave |

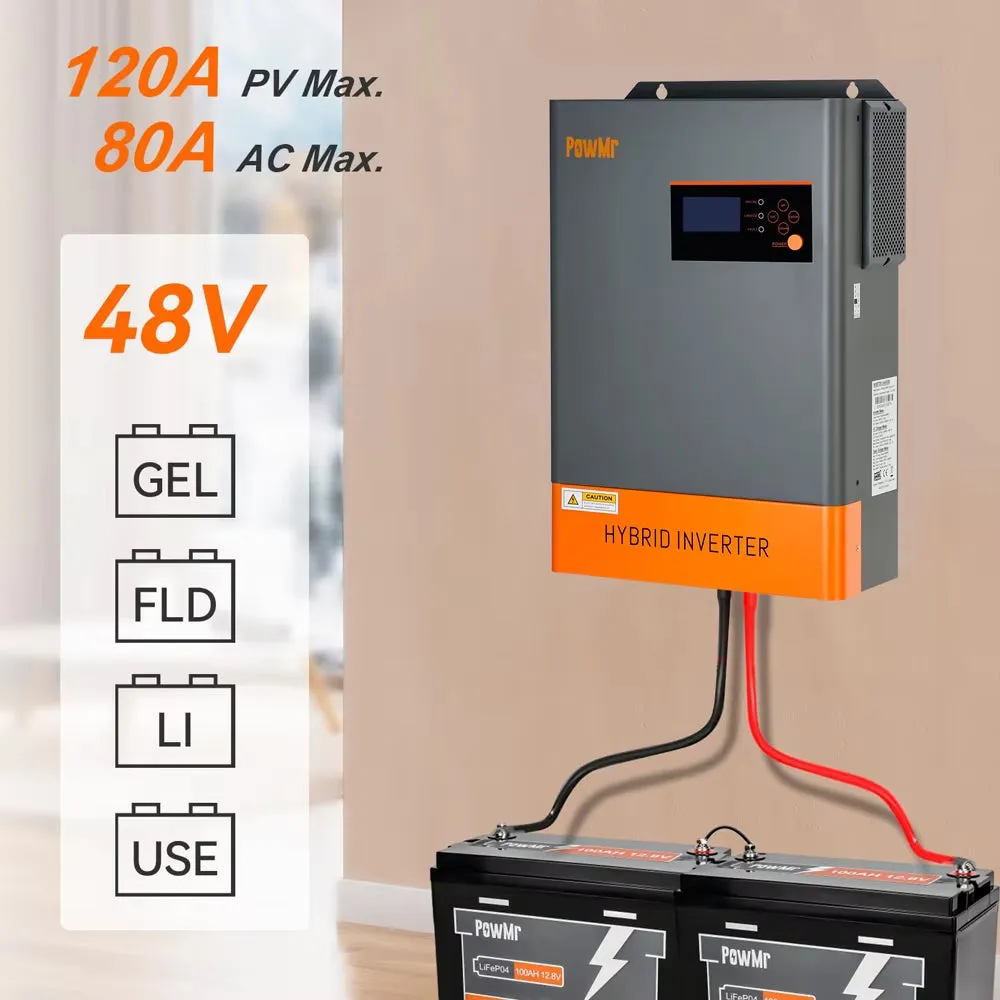

Max Charging Current(PV AC) |
120Amp |
Max Charging Current(AC) |
80Amp |
Charging Algorithm |
3-Step |
Rated Power |
6500W |
Max. PV Array Open Circuit Voltage |
500Vdc |
PV Array MPPT Voltage Range |
60Vdc~500vdc |
Max Input Current |
27A |
Max Charging Current(PV) |
120A |
Safety Certification |
CE |
Operating Temperature Range |
-10℃ to 55℃ |
Storage temperature |
-15℃~ 60℃ |
Dimension |
450x300x130 mm |
Net Weight, kg |
9.6 |

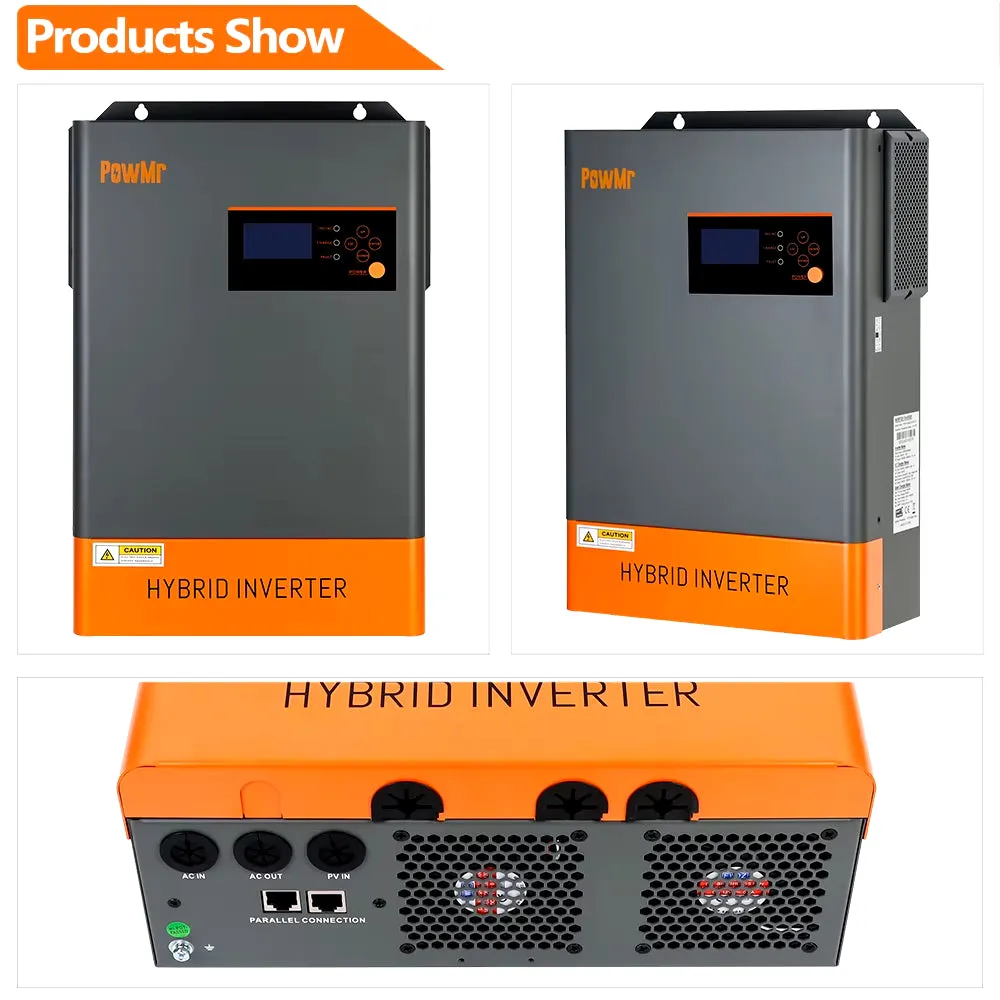

Product Picture:
