Product Details
＋Inverter use notice:
1. The starting power of inductive load electrical appliances shall be at least three times of the rated power of the electrical appliances. If the starting power exceeds the inverter power, the inverter may be damaged. Please select a suitable model before purchasing.
2. Please connect the circuit correctly according to the instructions, and install switches for each circuit.

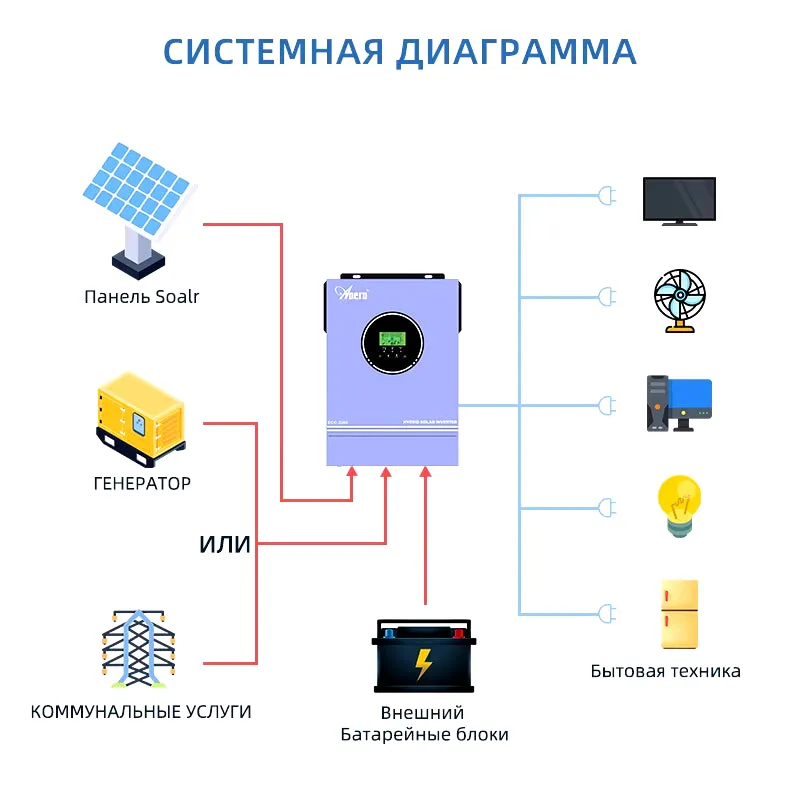

3. Starting sequence: first turn on the battery switch, start the inverter, and turn on the PV, mains and load switches.
4. Shutdown sequence: turn off the switches of load, PV and mains, turn off the inverter, and finally turn off the battery.
1000W 12V & 1500W 24V & 1600W 12V & 3000W 24V inverters are recommended to be used without WIFI module.
Please find an electrician to install the inverter. Installing it yourself can cause danger or damage to the equipment.

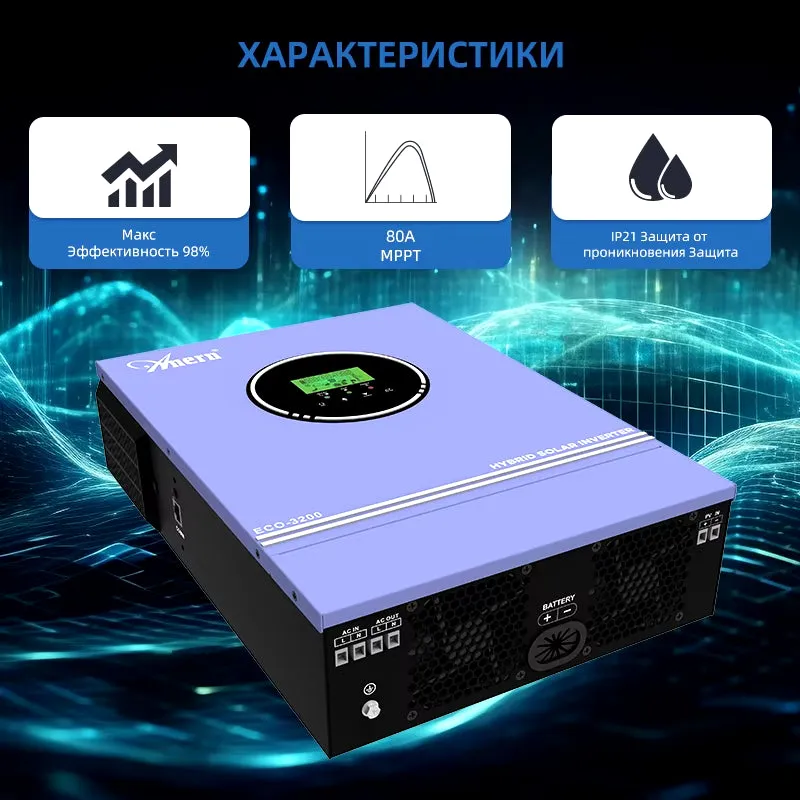

Features of Module
Model |

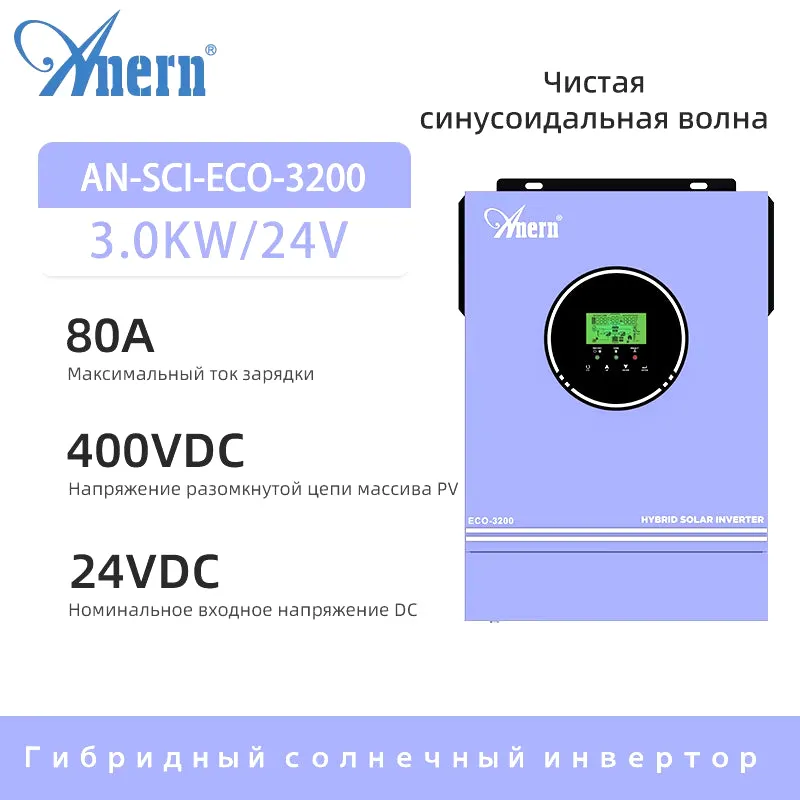

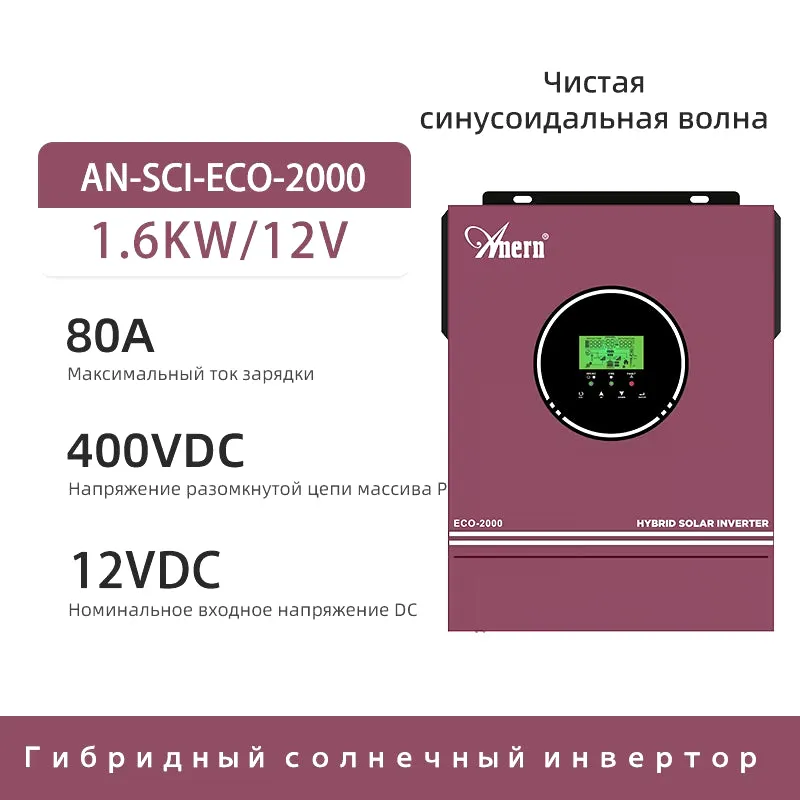

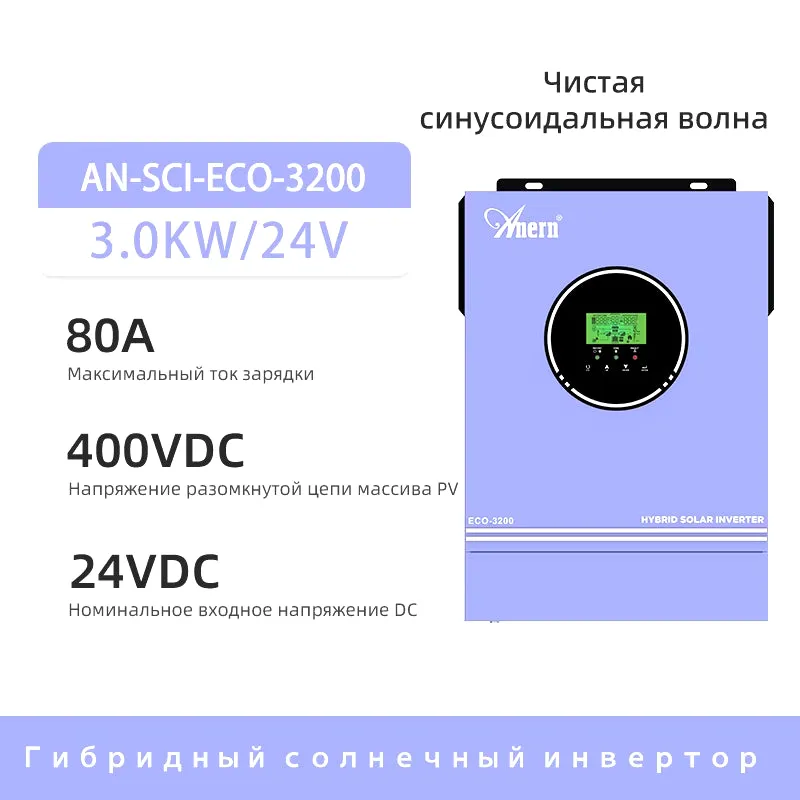

SCI-ECO-2000 |
SCI-ECO-3200 |
RATED POWER |
2000VA/1600W |
3200VA/3000W |
AC INPUT | ||
AC Input Voltage |
230VAC |
|
Selectable Voltage Range |
170-280 VAC (For Personal Computers) |
|
90-280 VAC (For Home Appliances) | ||
Frequency Range |
50 Hz/60 Hz (Auto sensing) |
|
AC OUTPUT | ||
AC Voltage Regulation (Batt. Mode) |
230VAC ± 5% |
|
Surge Power |
4000VA |
6400VA |
Efficiency (Peak) PV to Inverter |
98% |
|
Efficiency (Peak) Battery to Inverter |
94% |
|
Transfer Time |
10 ms (For Personal Computers);20 ms (For Home Appliances) |
|
Waveform |
Pure sine wave |
|
BATTERY & AC CHARGER | ||
Battery Voltage |
12VDC |
24VDC |
Floating Charge Voltage |
13.5VDC |
27VDC |
Overcharge Protection |
16VDC |
33VDC |
Maximum AC Charge Current |
60A |
|
SOLAR CHARGER | ||
Maximum PV Array Power |
2000W |
3000W |
MPPT Range @ Operating Voltage |
30-400VDC |
|
Maximum PV Array Open Circuit Voltage |
400VDC |
|
Maximum Charging Current |
80A |
|
PHYSICAL | ||
Dimension, D x W x H (mm) |
360*270*100mm |
390*270*100mm |
Net Weight (kg) |
4.4 |
5.4 |
INTERFACE | ||
Communication interface |
WIFI |
|
OPERATING ENVIRONMENT | ||
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
|
Operating Temperature |
–10°C - 50°C |
|
Storage Temperature |
–15°C - 60°C |
