Product Details

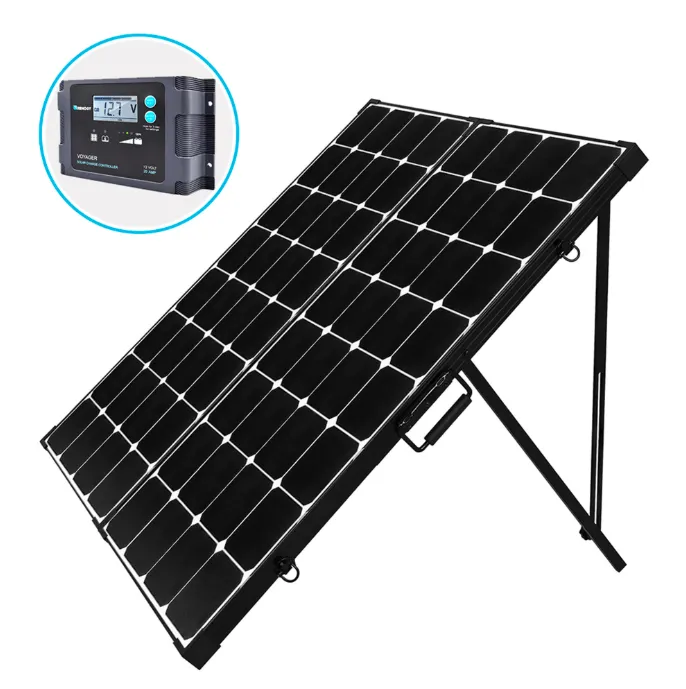

＋Renogy 200 Watt 12 Volt Eclipse Mono Solar Suitcase w/ Charge Controller FREE Shipping
More power with the same portability! This 200W Eclipse Solar Suitcase uses premium Eclipse panels to give you the most efficiency when charging. Featuring the same cells as the very popular 100W Eclipse Solar Panel, you will get the highest efficiency Renogy has to offer!
Improved leg adjustments allow you to tighten, loosen, and angle your suitcase legs with ease! The included Voyager charge controller allows you to monitor your system with its LCD screen and can be flush-mounted in your RV. Keep the adventure going with 200 Watts of power anywhere you go!
Your 200W Eclipse Solar Suitcase Order Includes:
- (1) x 200 Watt Solar Suitecase

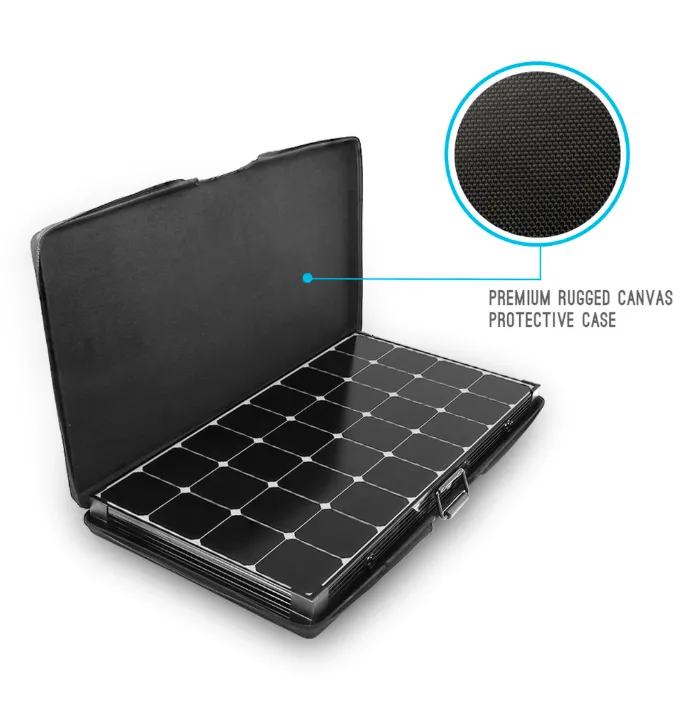

- (1) x Premium Rugged Canvas Protective Case
- (1) x 20A Voyager Charge Controller
- (1) x MC4 to Alligator Clips w/ Fuse
- Free Shipping
- Lifetime Customer Support
KEY FEATURES
Efficient- Excellent performance in low-light environments.
- Alligator clips for ease of connection.

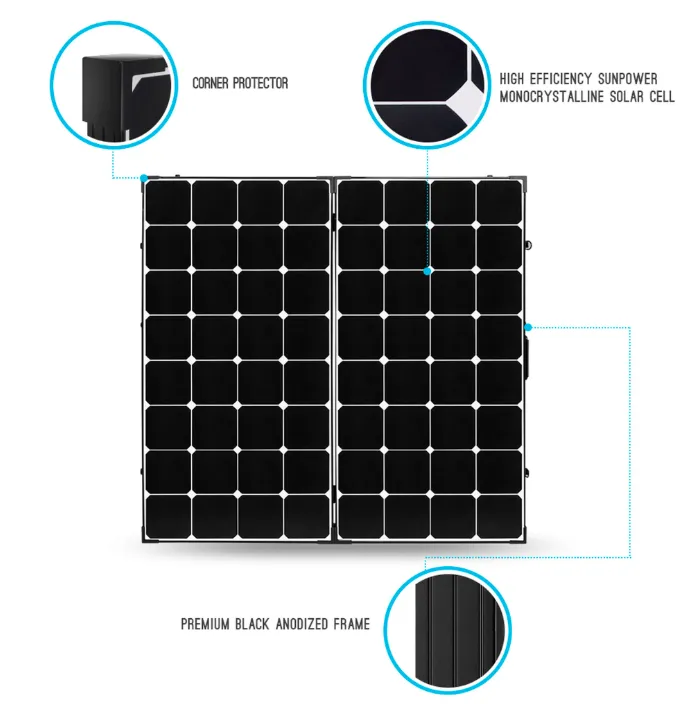

- Two 100 watt Eclipse Solar Panels

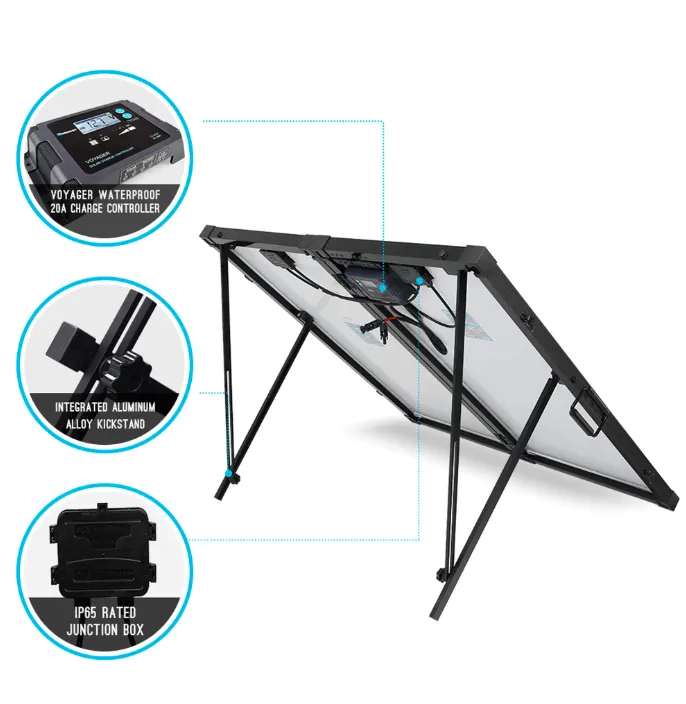

- Adjustable, corrosion-resistant aluminum stand as well as a heavy duty handle and latches for longevity.
- Protective casing
- Compatible with Gel, Sealed, Lithium, and Flooded batteries.

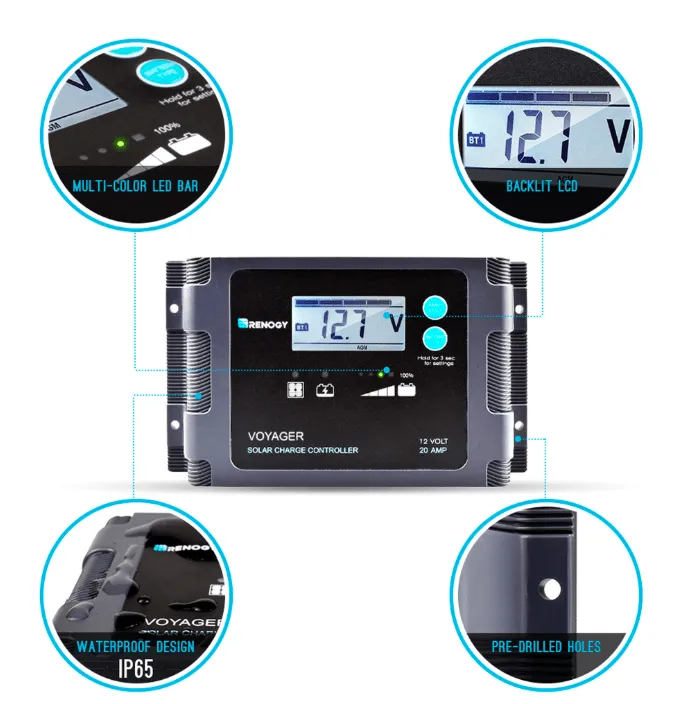

- Charge controller with LCD display and fully adjustable parameter settings.
- 20A built-in 4-stage solar charge controller provides overcharge protection, reducing fire risk.
- Negative-ground charge controller for compatibility with your RV, boat, trailer, etc.
- The low-voltage system avoids electric shock hazards.
| RENOGY 200W FOLDABLE SOLAR SUITCASE | RENOGY 20A VOYAGER CHARGE CONTROLLER |
|---|---|
| Maximum Power at STC: 200W | Nominal Voltage: 12 VDC |
| Maximum System Voltage: 600VDC(UL) | Rated Charge Current: 20A |
| Open-Circuit Voltage: 21.2 V | Max. PV Input Voltage: 26 VDC |
| Optimium Operating Voltage: 17.7V | Grounding: Common Negative |
| Short-Circuit Current: 11.72A | Self-consumption: ≤8mA |
| Optimium Operating Current: 10.35A | Operating Temperature: -40°F to 185°F |
| Folded Dimension: 41.3 x 21.1 x 3.1 inches | Dimensions: 6.38 x 3.82 x 1.34 inches |
| Weight: 33.60 lbs | Weight: 0.88 lbs |
WARRANTY INFORMATION
| Panels |
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 3-year material and workmanship warranty |
| Accessories | 1-year material warranty |
